EI8HT Splitter / Tap

HK$15 - HK$30
結帳時計算運費
PAS SPL: PAS SPL2
HK$15
HK$26 HK$15
節省HK$11
品牌: EI8HT
庫存: 有庫存
Collections:
HK$15
HK$26 HK$15
Features
  • All ports F-(f) connector, 75Ω
  • Zinc die cast housing , nickel-plated
  • Two pieces of screws attached
  • Low insertion loss, high return loss and isolation
  • Particularly design for easy and convenient installation
  • Grounding terminal provided
  • Screening factor: 5 - 1000MHz >75dB
Specification

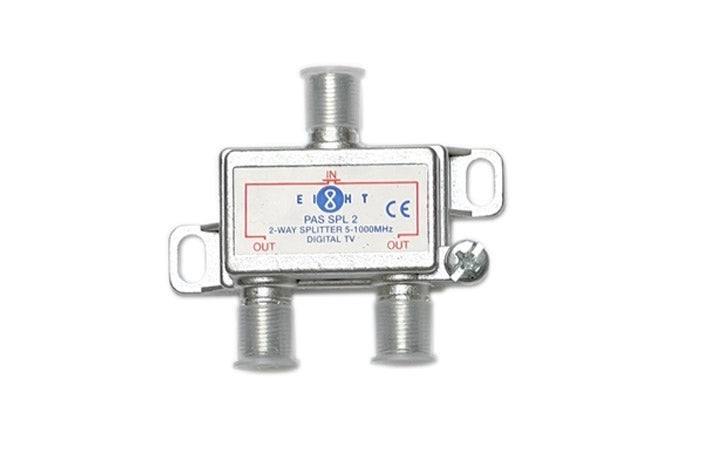

PAS SPL2

General

Insertion Loss (dB) (IN-OUT)   5 - 40 MHz ≦ 3.5
  40 - 470 MHz ≦ 3.5
  470 - 1000MHz ≦ 4.5
Isolation  Loss (dB) (OUT-OUT) 5 - 40 MHz ≧ 22
  40 - 470 MHz ≧ 26
  470 - 1000 MHz ≧ 24
Return Loss (dB) (IN&OUT) 5 - 40 MHz ≧ 21
  40 - 470 MHz ≧ 20
  470 - 1000 MHz ≧ 16
Dimensions (L x Hx D)   65 x 55 x 16 mm



Specification

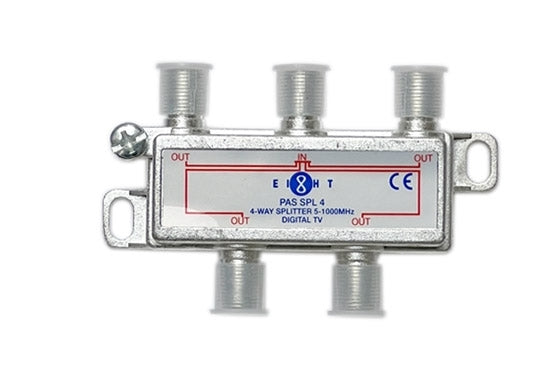

PAS SPL4

General

Insertion Loss (dB) (IN-OUT)   5 - 40 MHz ≤ 6.7
  40 - 470 MHz ≤ 7.5
  470 - 1000MHz ≤ 8.0
Isolation  Loss (dB) (OUT-OUT) 5 - 40 MHz ≥ 25
  40 - 470 MHz ≥ 25
  470 - 1000 MHz ≥ 23
Return Loss (dB) (IN&OUT) 5 - 40 MHz ≥ 18
  40 - 470 MHz ≥ 20
  470 - 1000 MHz ≥ 16
Dimensions (L x Hx D)   88 x 55 x 16 mm



Specification

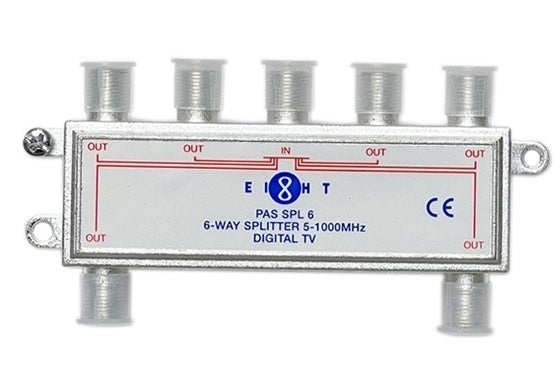

PAS SPL6

General

Insertion Loss (dB) (IN-OUT)   5 - 40 MHz ≤ 9.0
  40 - 470 MHz ≤ 9.2
  470 - 1000MHz ≤ 11
Isolation  Loss (dB) (OUT-OUT) 5 - 40 MHz ≥ 25
  40 - 470 MHz ≥ 20
  470 - 1000 MHz ≥ 20
Return Loss (dB) (IN&OUT) 5 - 40 MHz ≥ 18
  40 - 470 MHz ≥ 16
  470 - 1000 MHz ≥ 15
Dimensions (L x Hx D)   118 x 60 x 18 mm
