The Axxess Motion Sensor Wall Mount supports all motion dependent functions: lighting, security, occupancy detection and energy management. Upon detecting people moving in a space, it communicates that event wirelessly to the Control System.
Features
Ambient Light Sensor
Temperature Sensor
Humidity (optional)

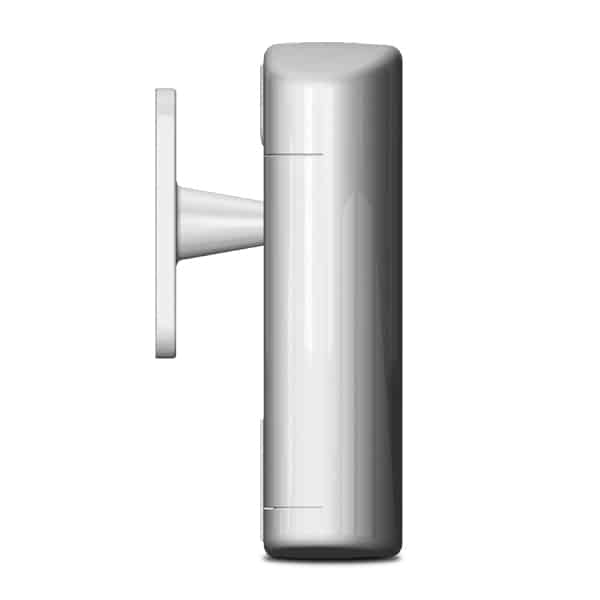

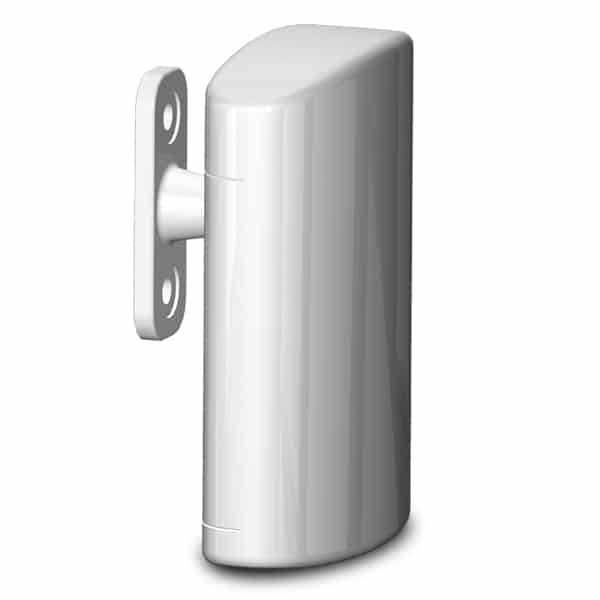

It mounts simply and easily with a ball-mount that allows the sensor to be aimed wherever needed.
ZigBee Pro Compatible, Control4 Driver Downloadable
SPECS
Uses:
– Energy management
– Security systems
– Automatic lights
– Home and office automation
Dimensions:
Height: 3.03″ (7.7cm)
Width: 2.3″ (5.84cm)
Depth: 0.5″ (1.27cm)
Colors:
White and Black
Approvals:
FCC Part 15
CE
Wireless:
ZigBee PRO Compatible (802.15.4)
Control4 driver downloadable
Power & Battery:
2 – 1.5V AA alkaline batteries
Low battery notification
2 year+ battery life
Motion Sensor:
PIR motion sensor
(dual element ambient effect reduction)
Viewing Angle: 90° H, 30° V
Effective range: 30
Temperature Sensor:
Accurate to +/- 1°C
Operating range of -40°C to 70°C
Light Sensor:
Detects levels from light to dark
Humidity Sensor:
Accurate to +/- 3% relative humidity
Operating range of -40°C to 85°C
Mounting Options:

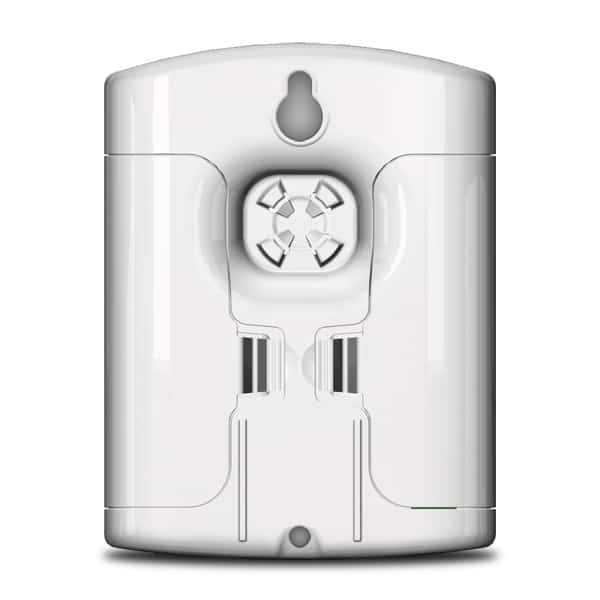

1. Adjustable ball mount
2. Keyhole screw
