  3. Raspberry Pi 5 Desktop Kit 官方基础套餐
Raspberry Pi

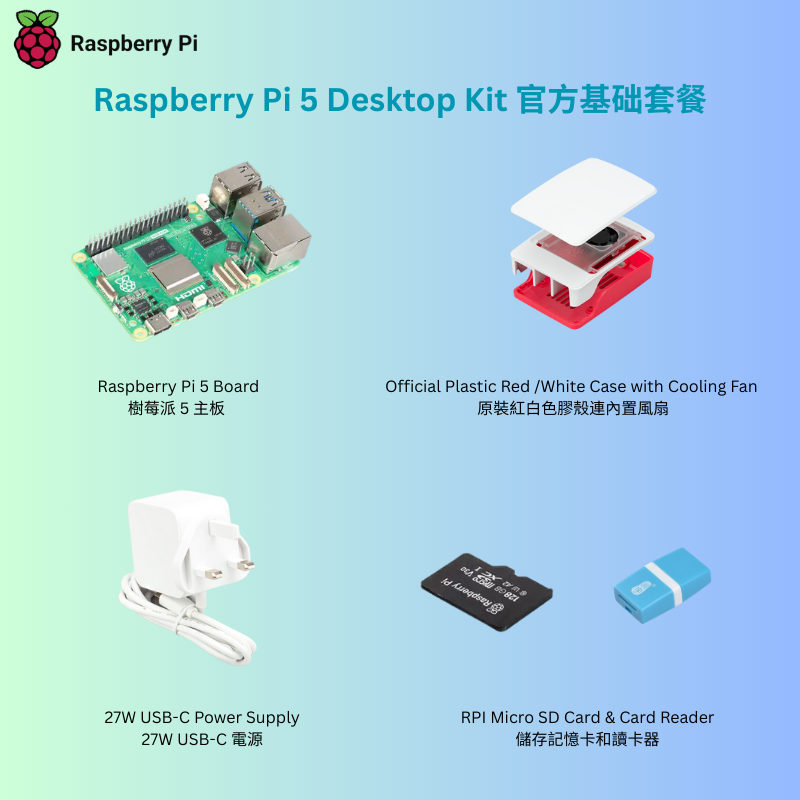

Raspberry Pi 5 Desktop Kit 官方基础套餐

HK$900 - HK$11,000
結帳時計算運費
SDRAM Size: 2GB
SD Card Size: 32GB
HK$900
HK$900
品牌: Raspberry Pi
庫存: 有庫存
SKU: pi5
Tags:
Collections:
HK$900
HK$900

Raspberry Pi 5

The everything computer. Optimised.

With 2–3× the speed of the previous generation, and featuring silicon designed in‑house for the best possible performance, we’ve redefined the Raspberry Pi experience.

Specification

  • Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
  • VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
  • Dual 4Kp60 HDMI® display output with HDR support
  • 4Kp60 HEVC decoder
  • LPDDR4X-4267 SDRAM (2GB, 4GB, 8GB, and 16GB)
  • Dual-band 802.11ac Wi-Fi®
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • microSD card slot, with support for high-speed SDR104 mode
  • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
  • 2 × USB 2.0 ports
  • Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
  • 2 × 4-lane MIPI camera/display transceivers
  • PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
  • 5V/5A DC power via USB-C, with Power Delivery support
  • Raspberry Pi standard 40-pin header
  • Real-time clock (RTC), powered from external battery
  • Power button



Raspberry Pi Case

The Raspberry Pi Case for Raspberry Pi 5 is a clip-together four-part enclosure with an active cooling fan. It keeps your Raspberry Pi 5 at a comfortable operating temperature even under heavy load.

Specification

Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

Fan speed control: Pulse width modulation control with tachometer

Maximum airflow: 2.79 CFM

Maximum fan speed: 8000 RPM +/- 15%

Case material: ABS (base, frame, lid) and PC (fan assembly)





Raspberry Pi SD Cards

Optimise data transfer speeds on your Raspberry Pi computer with an official Raspberry Pi SD Card. Rigorously tested to ensure optimal performance on Raspberry Pi computers, these Class A2 microSD cards help ensure you get the smoothest user experience from your device.

Specification

A2 microSD cards with support for DDR50 and SDR104 bus speeds and command queueing (CQ) extension

Speed Class: C10, U3, V30, A2

Random 4KB read performance: 3,200 IOPS (Raspberry Pi 4, DDR50) 5,000 IOPS (Raspberry Pi 5, SDR104)

Random 4K write performance: 1,200 IOPS (Raspberry Pi 4, DDR50) 2,000 IOPS (Raspberry Pi 5, SDR104)

Shock-proof, X-ray–proof, and magnet-proof

32GB, 64GB, or 128GB capacity

Available unprogrammed or pre-programmed with Raspberry Pi OS.

microSDHC / microSDXC formats

Compatible with microSDHC- and microSDXC-supporting host devices



Raspberry Pi 27W USB-C Power Supply

The Raspberry Pi 27W USB-C Power Supply is an ideal power supply for Raspberry Pi 5, especially for users who wish to drive high-power peripherals such as hard drives and SSDs from Raspberry Pi 5's four Type A USB ports. Additional built-in power profiles mean the Raspberry Pi 27W USB-C Power Supply is also an excellent option for powering third-party PD-compatible products. The available profiles are 9V, 3A; 12V, 2.25A; and 15V, 1.8A, all limited to a maximum of 27W.

Specification

Input voltage: 100 - 240 v.a.c

Input AC frequency: 50-60Hz

Output voltage: 5.1V

Output current: 5.0A

Output power: 25.5W

Average active efficiency: 89.0%

Efficiency at low load (10 %): 87.9%

No-load power consumption: 0.1W

Connector: USB-C

Cable: 1.2m 17AWG, white or black
