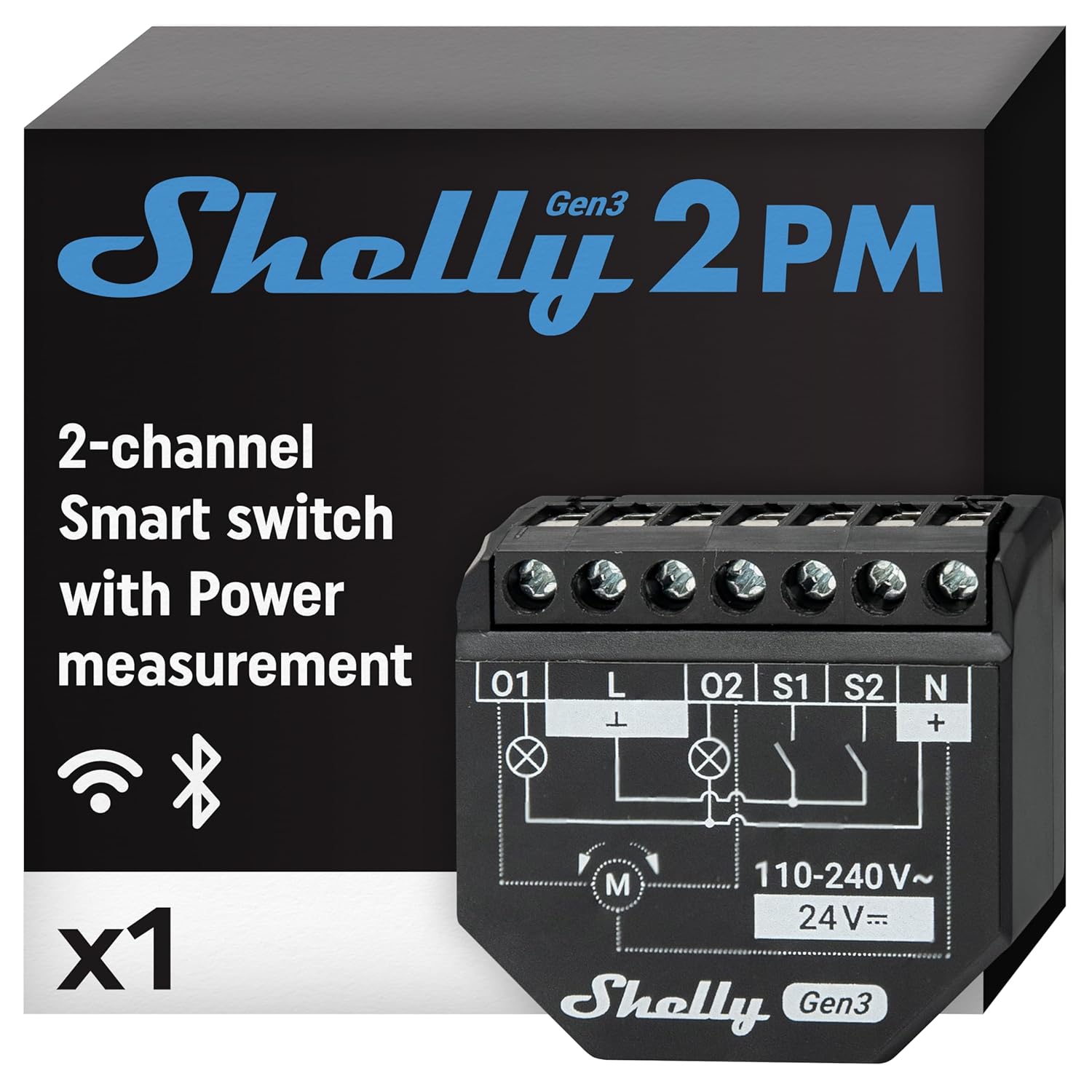

Shelly 2PM Gen3

HK$365
HK$365
結帳時計算運費
品牌: Shelly
庫存: 有庫存
Collections:
HK$365
HK$365
Key Features
  • 2 channels on the same phase
  • Power metering on each channel
  • Cover (roller) control - Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.
  • Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.

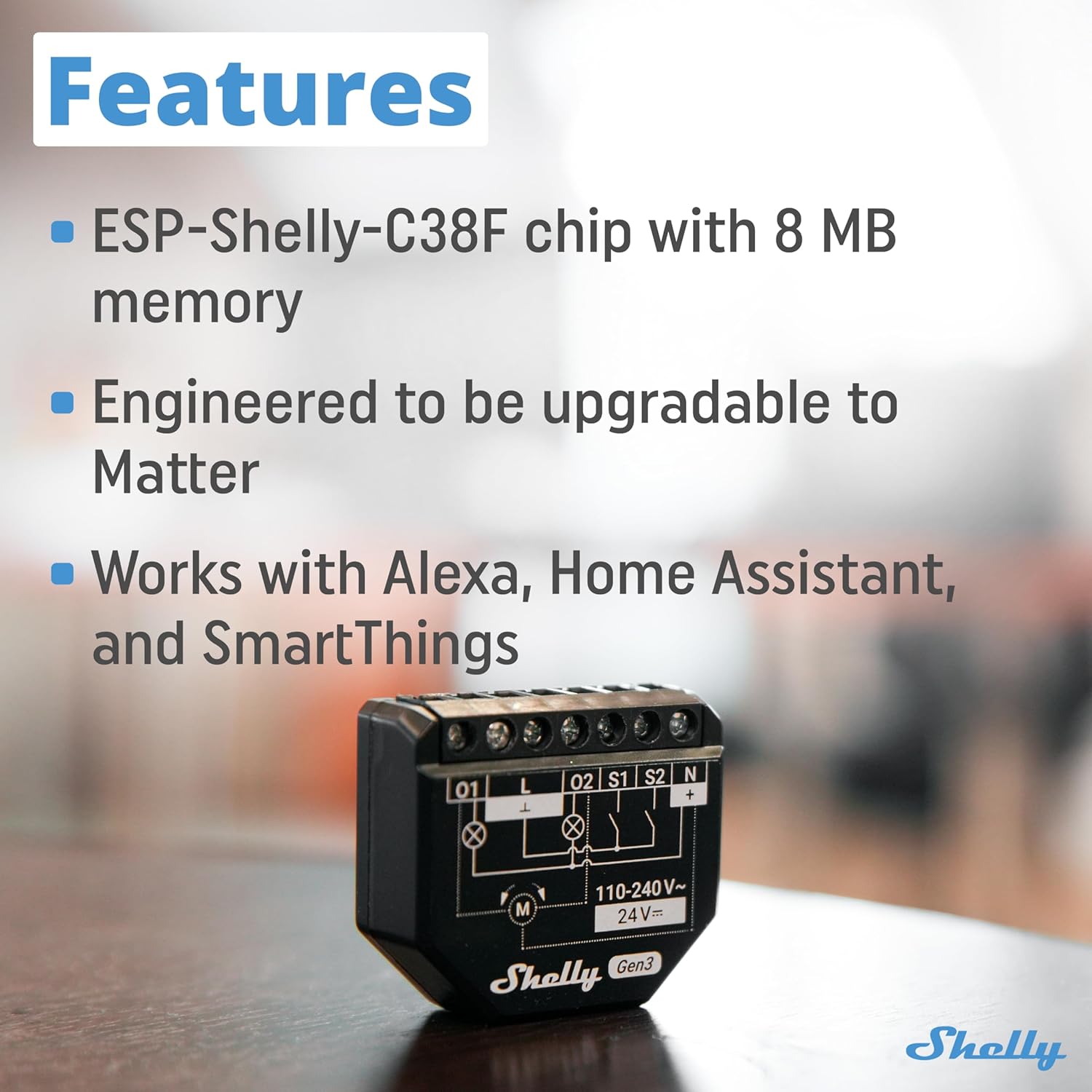

  • New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB
  • Improved durability of terminals
  • Virtual components
  • Wi-Fi range extender & Bluetooth gateway
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
  • No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.

Device identification

  • Device name: Shelly 2PM Gen3

  • Device model: S3SW-002P16EU

  • Device SSID: Shelly2PMG3-XXXXXXXXXXXX

  • BLE Model ID: 0x1005

  • Simplified internal schematics


    Device electrical interfaces

    Inputs

    • 2 switch/button inputs on screw terminal: S1 and S2

    • 3 power supply inputs on screw terminals: 1 N (+) and 2 L (Ʇ)

    Outputs

    • 2 relay outputs with power measurement on screw terminal

    Add-on interface

    • Shelly proprietary serial interface



    Shelly Plus 1 addon interface



    ⚠CAUTION! High voltage on the add-on interface when the Device is powered!

    Connectivity

    • Wi-Fi

    • Bluetooth

    Safety functions

    • Overheating protection

    • Overvoltage protection

    • Overcurrent protection

    • Overpower protection

    • Obstacle detection (cover mode)

    • Safety switch (cover mode)

    Supported load types

    • Resistive (incandescent bulbs, heating appliances)

    • Capacitive (capacitor banks, electronic equipment, motor starting capacitors)

    • Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)

    User interface

    blu Inputs

    • One (Control) button

      • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

      • Press and hold for 10 seconds to factory reset the Device.



    Outputs

    • LED (monocolor) indication

      • AP (Access Point) enabled and Wi-Fi disabled:
        1 second ON / 1 second OFF

      • Wi-Fi enabled, but not connected to a Wi-Fi network:
        1 second ON / 3 seconds OFF

      • Connected to a Wi-Fi network:
        Constantly ON

      • Cloud is enabled, but not connected:
        1 second ON /5 seconds OFF

      • Connected to Shelly Cloud:
        Constantly ON

      • OTA (Over the Air Update):
        ½ sec ON / ½ second OFF

      • Button pressed and held for 5 seconds:
        ½ second ON / ½ second OFF

      • Button presses and held for 10 seconds:
        ¼ second ON / ¼ second OFF

    The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.



    Specifications

    Quantity

    Value

    Physical

    Size (HxWxD):

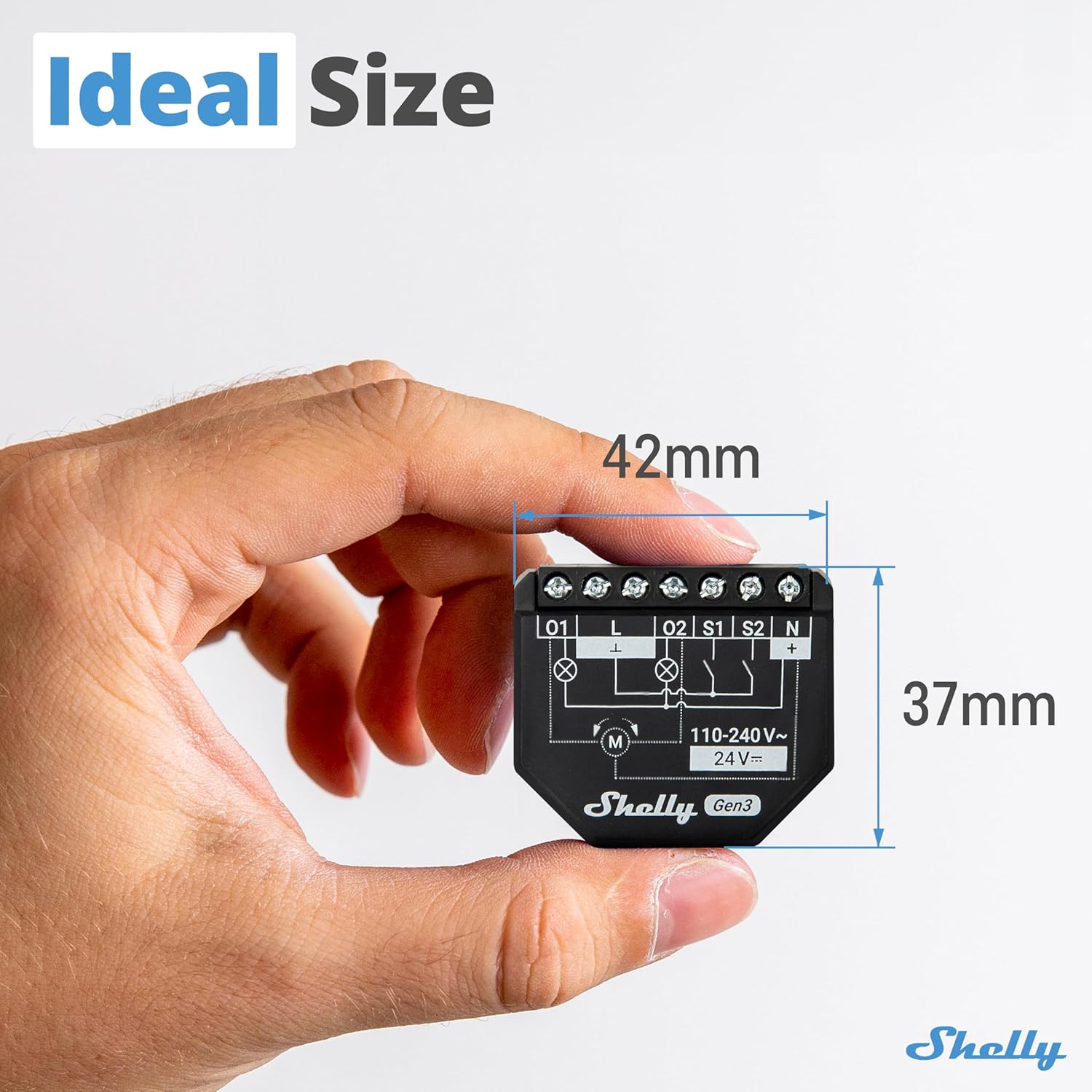

    37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in

    Weight:

    30 g / 1.06 oz

    Screw terminals max torque:

    0.4 Nm / 3.5 lbin

    Conductor cross section:

    0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

    Conductor stripped length:

    6 to 7 mm / 0.24 to 0.28 in

    Mounting:

    Wall box

    Shell material:

    Plastic

    Shell color:

    Black

    Terminals color:

    Black

    Environmental

    Ambient working temperature:

    -20°C to 40°C / -5°F to 105°F

    Humidity:

    30% to 70% RH

    Max. altitude:

    2000 m / 6562 ft

    Electrical

    Power supply:

    110 - 240 V~ / 24 V⎓ ±10%

    Power consumption:

    < 1.4 W

    External protection:

    Tripping characteristic B or C,
    16A max. rated current,
    min. 6 kA interrupting rating,
    energy limiting class 3

    Output circuits ratings

    Max. switching voltage:

    • 240 V~

    • 30 V⎓

    Max. switching current AC:

    10 A (per channel), 16 A (total), 18 A (total peak)

    Max. switching current DC:

    10 A

    Sensors, meters

    Voltmeter (AC):

    Yes

    Ammeter (AC):

    Yes

    Internal-temperature sensor:

    Yes

    Radio

    Wi-Fi

    Protocol:

    802.11 b/g/n

    RF band:

    2412 - 2472 МHz

    Max. RF power:

    < 20 dBm

    Range:

    Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
    (Depends on local conditions)

    Bluetooth

    Protocol:

    4.2

    RF band:

    2402 - 2480 MHz

    Max. RF power:

    < 4 dBm

    Range:

    Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
    (Depends on local conditions)

    Microcontroller unit

    CPU:

    ESP-Shelly-C38F

    Flash:

    8MB

    Firmware capabilities

    Schedules:

    20

    Webhooks (URL actions):

    20 with 5 URLs per hook

    Scripting:

    Yes

    MQTT:

    Yes

    Basic wiring diagrams

    2PM-Gen3 AC-wiring.png

    Dual-channel switch mode, AC power supply
    2PM Gen3 DC.png

    Dual-channel switch mode, DC power supply
    2PM-Gen 3-AC-cover-wiring.png

    Cover mode

    Legend

    Terminals

    Wires

    O1, O2:

    Load circuit output terminals

    N:

    Neutral wire

    L:

    Live terminal (110-240 VAC)

    L:

    Live wire (110-240 V~)

    S1, S2:

    Switch input terminals

    +:

    24 V⎓ positive wire

    S1, S2

    Switch input terminals

    -

    24 V⎓ negative wire



    +:

    24V⎓ positive terminal





    Ʇ:

    24V⎓ negative terminal
