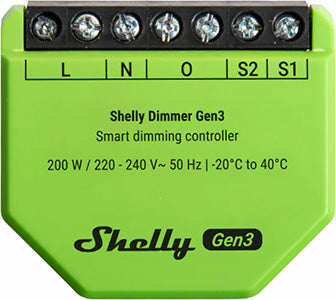

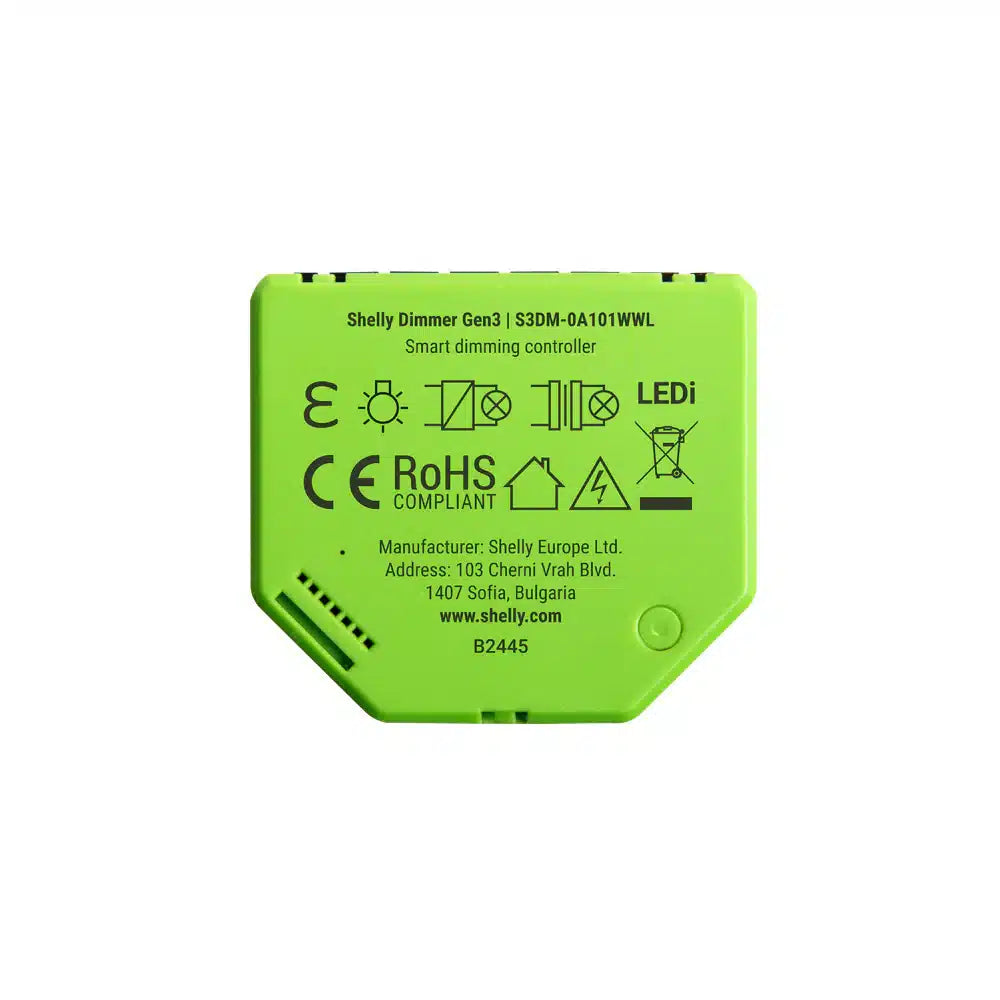

Shelly Dimmer Gen 3

Device identification

• Device name: Shelly Dimmer Gen3

• Device model: S3DM-0A101WWL

• Device SSID: ShellyDimmerG3-XXXXXXXXXXXX

• Device Bluetooth ID: 0x1073

• Wi-Fi operated Bluetooth inclusion, or use it as a Bluetooth gateway.
• No need for neutral: Can be used without a neutral wire. Bypass is required when the device is used without neutral and the load is under 20 W.
• Supported light types: Dimmable LED lamps: up to 150 W Incandescent bulbs: up to 200 W Halogen lamps: up to 200 W Iron-core transformer with low-voltage incandescent lamps: up to 200 VA Dimmable electronic transformers: up to 200 W
• Overload and temperature protection
• Equipped with a new processor & increased flash memory – ESP Shelly

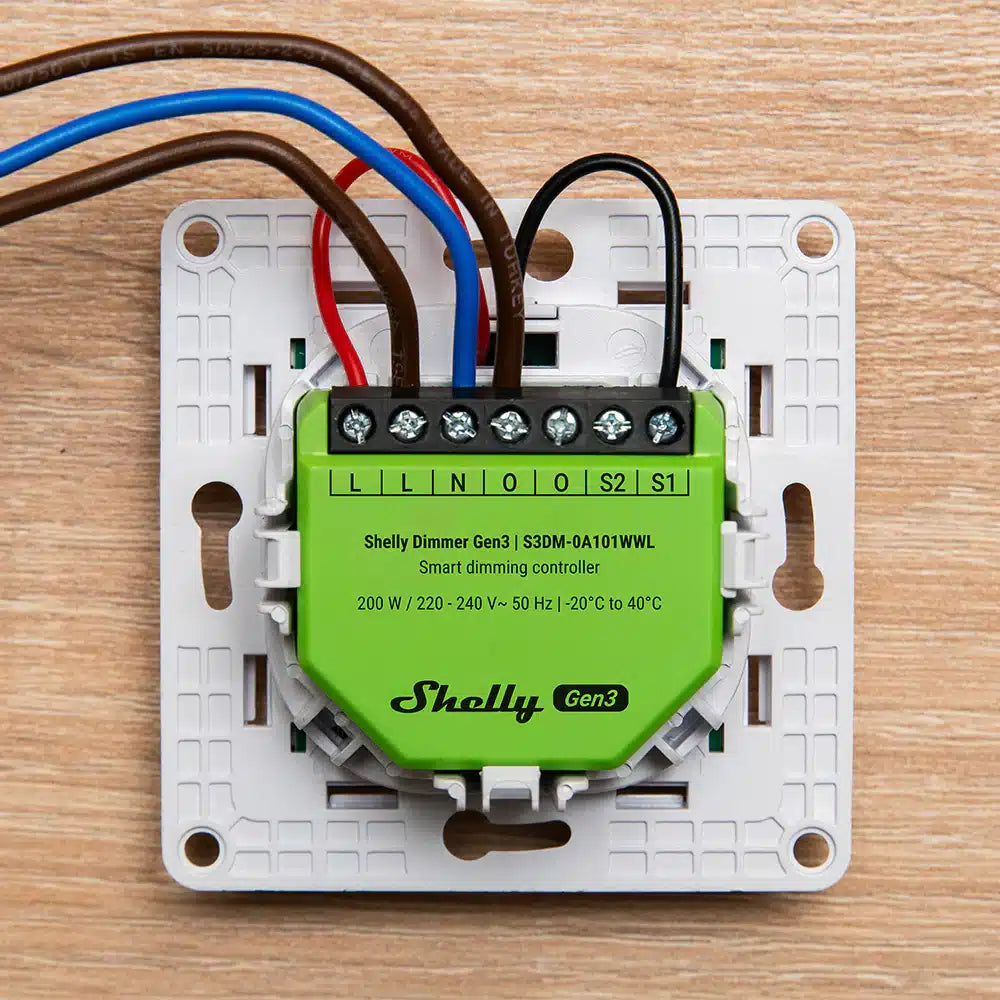

• Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
• Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.

*Bypass is required when the device is used without neutral and the load is under 20 W.
