Product Introduction

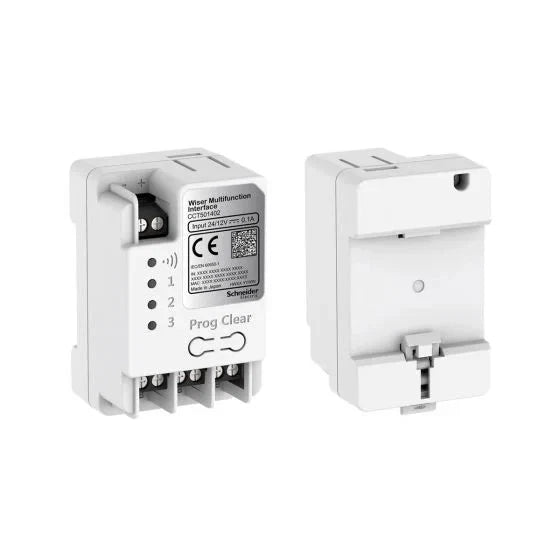

The Schneider Electric Wiser Multifunction Interface (Model CCT501402) is a core gateway device within the Wiser smart home series. Through its Zigbee/RS485 network interface, it integrates centralized HVAC (central air conditioning) and floor heating systems into the Wiser Hub smart control network, allowing users to remotely monitor and operate them via the Wiser by SE App or web interface. This interface includes an RTC battery pack to ensure the clock remains accurate during power outages, making it an essential component for creating a smart home climate control system.
Key Features
• Zigbee / RS485 dual network interface, compatible with the Wiser Hub ecosystem
• Capable of controlling centralized HVAC and floor heating systems
• Equipped with 4 LEDs (green/red/orange) for local status display
• Built-in RTC real-time clock battery pack
• DIN rail mount design for easy integration into electrical distribution boards
• Mercury-free, environmentally friendly
• CE certified, compliant with EN/IEC 60669-2-4 and EN/IEC 60730-2-13 standards
Specifications at a Glance
| Brand | Schneider Electric |
|---|---|
| Model | CCT501402 (Wiser Multifunction Interface) |
| Main Function | Controls centralized HVAC / floor heating systems, links with Wiser Hub |
| Connectivity | Zigbee 2.4GHz (IEEE 802.15.4) / RS485 network |
| Power Supply | 12V DC / 24V DC, <100mA |
| Protection Rating | IP20 (for indoor use) |
| Dimensions | 46mm (W) x 77mm (H) x 41mm (D) |
| Operating Temperature | -10°C ~ 45°C |
| Certifications | CE, EN/IEC 60669-2-4, EN/IEC 60730-2-13 |
| Warranty | 18-month manufacturer warranty (Schneider Electric Hong Kong) |
| Price | HK$1,424 |
| Authorized Goods | Hong Kong Authorized Goods |
Suitable Scenarios
Suitable for residential and office users who have installed or intend to install the Wiser Hub smart home system, especially those looking to unify their central air conditioning or floor heating systems into a single app. Renovation contractors and ELV/smart home engineering companies can also use this gateway as an intermediate layer for connecting HVAC systems. Since some air conditioning systems require an additional signal adapter card, it is recommended to communicate the connection method with air conditioning technicians during the early stages of renovation.
FAQ
Does the Wiser Multifunction Interface support all air conditioning systems?
Not necessarily; it depends on the communication interface of the existing air conditioning system. Some air conditioning systems require an additional signal adapter card to connect with the Wiser Multifunction Interface. It is recommended to confirm compatibility and connection points with an air conditioning technician before installation.
How is the Wiser Smart Multifunction Interface installed?
Installation by a professional technician is recommended. The interface features a DIN rail design for easy installation in electrical distribution boards. During installation, pay attention to power connection points and ensure good Zigbee signal reception. You can consult our technical team for detailed installation methods.
Where can I buy the Schneider Electric Wiser Smart Multifunction Interface in Hong Kong?
LINKO Shop (linko.shop) has it in stock. These are Hong Kong authorized goods and come with an 18-month manufacturer warranty, priced at HK$1,424.
